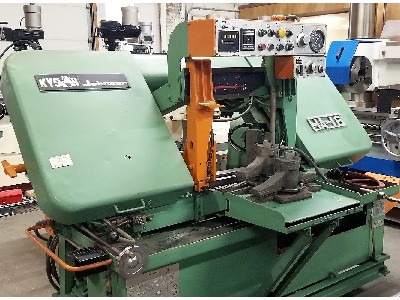

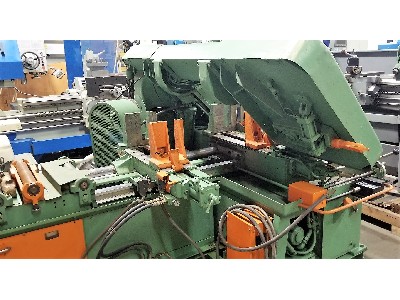

USED KYSOR JOHNSON 16" FULLY AUTO HORIZ BANDSAW
KYSOR JOHNSON HA16/400
Age: 1978
Condition: VERY GOOD
Stock Number: 4075
Click to view larger photo
Request a quote on stock# 4075
Equipped With:
14" x 16" Flats, 16" Round Cap,
***IF DOING BUNDLE OF SMALL PARTS HAS NESTING VISE CLAMPS
Blade Size: 1 1/4" x 180" x .035"
Blade Speeds Variable.: 5 - 400 FPM
EQUIPPED WITH:
Automatic Shuttle Type Bar Feed w/24" Stroke
W/ UP TO 9 STROKES FOR EXTRA LONG PARTS
Clamp & Feed Hydraulic Vises
Hydraulic Head Elevation
Centralized Control w/Push-Pull Buttons For Hydraulic Start-Stop;
Band Start-Stop;
Auto Cycle Start-Stop;
Selector Switches For Index Reverse-Hold-Forward; Index Vise Open-Automatic-Clamp;
Fixed Vise Automatic-Open-Clamp
Operation Manual-Automatic
Automatic-Down
Work Height: 28"
Coolant Pump & Motor w/Control For On-Off
Band Speed Fast-Hold-Slow
Feed Force Control Gauges For Band Speed In FPM & Feed Force In PSI
Power Driven Band Chip Removal Brush
24" DIA WHEELS
1/3 HP 3450 RPM Coolant Pump Motor
2 HP 1800 RPM 230/460/3/60 Hydraulic Pump Motor
3.7KW/ 5 HP 1800 RPM 230/460/3/60 Main Motor
Wired 440 V 3ph but dual voltage
Weight approx. 3800#
Overall Dimensions Approx. 96" L-R x 108" F-B x 60" H
Variable speed drive, Chip brush, Hydraulic Shuttle feed, Parts counter, multiple feed up to 3 times, Coolant sytsem
Some specifications taken from literature and must be verified
