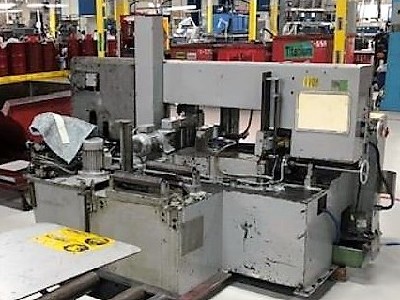

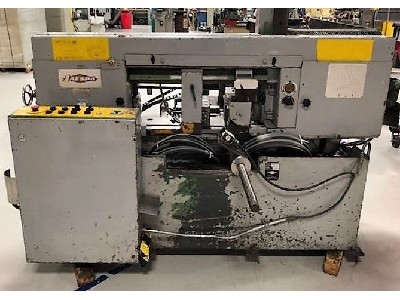

USED JESPA AUTOMATIC HORIZONTAL BANDSAW W260AP

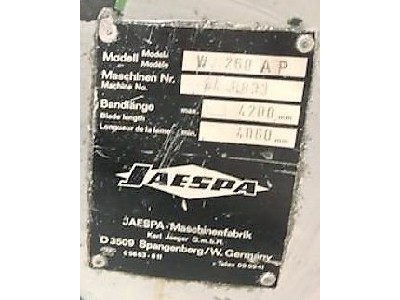

Model: W260AP
Age: 1984
Condition: VERY GOOD
Stock Number: 3868
Click to view larger photo
Request a quote on stock# 3868
Equipped With:
RIGID BOX WAY SLIDE FOR ACCURATE STRAIGHT UP AND DOWN LIFT(NOT HINGE TYPE)
Rounds-Cap 11"
Rect-Cap (H) 11"
Rect-Cap (W) 12"
Type Manual, and Automatic,
Roller Feed Vise
20" x 60" Roller stand
15" Diameter Blade Wheels
Blade Width 1"
Blade Thickness 0.035"
Blade Length 12'
2.3 KW Main Motor
3/4 KW Hydraulic motor
Seperate Coolant Pump
Dimensions 82" x 40" x 54"
Weight 2500 (LBS)approx
Wired 220 volts 3 Ph.
Operation by control panel
Manuals
Roller bearing and Carbide guides
additional information
cutting diameter:260 mm
saw band length:3660 - 3600 mm
square material:260 x 260 mm
variable blade cutting speed
feed continuous with roller jaw vise
- clamping jaws W x H: 280 x 140mm
- infeed jaws W x H. 250 x 140mm
