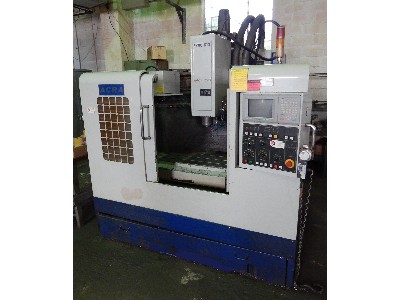

USED ACRA CNC Vertical Machining Center
ACRA VMC 610
Age: 2000
Condition: VERY GOOD
Stock Number: 3597
Click to view larger photo
Request a quote on stock# 3597
Equipped With:

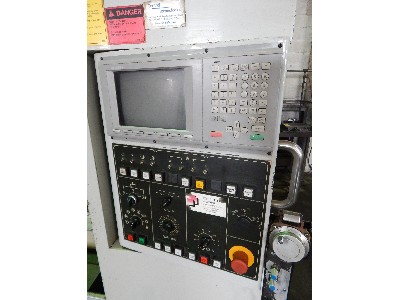

Mitsubishi Meldas CNC Control
Full Enclosure 16 Tool Carousel
Rigid Box Ways Worklight
AC Digital Drives Pilot Lamp
Ribbed Castings Levelling Bolts and Pads
No Table Overhang Manuals, toolbox
TABLE: Overall Size 31.5" x 17.7"
T Slots (#/W/P) 3 / .02" / 4.9"
Max Table Load 660 lbs.
TRAVELS: X / Y / Z 23.6" x 18.9" x 19.7"
Spindle to Column 18.9"
Spindle to Table 5.9" - 25.6"
SPINDLE: Taper BT-40
Speed 8000 RPM
FEEDRATES: Rapid X, Y / Z 590 IPM/472 IPM
Cutting Feedrate 0.04 - 196 IPM
ACCURACIES: Positioning +-0.0002"/12"
Repeatability +-0.0001"
NOTE: These accuracies with full table load
ATC: No. of Tools 16
Type of Tool Changer Carousel
Max Tool Dia./Length 3.1"/9.8"
Max Tool Weight 15.4 lbs.
MOTORS: Spindle Motor (30 min) 10 Hp
Axes 1.3 Hp
Coolant 1.2 Hp
OVERVIEW: Net Weight 8,800 lbs.
Footprint 95"x94"x97"
Power 15 KVA
Air Required 80 PSI
ALSO HAVE AVAILABLE AS AN OPTION :
4TH AXIS TNC200 4AXIS WITH 7 3/4" T-SLOTTED PLATE
