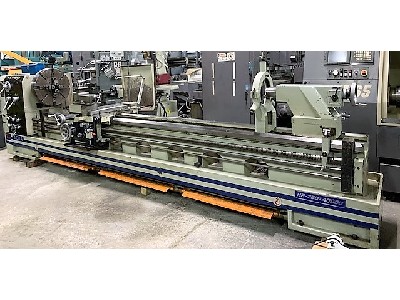

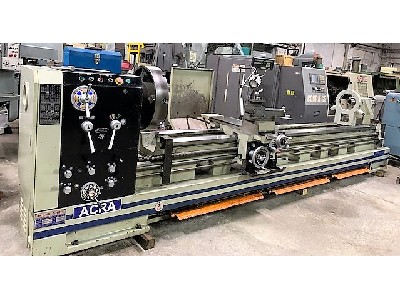

Request a quote on stock# 3961| Specification | Description |
|---|---|
| TURNING DIAMETER OVER BED: | 31" |
| DISTANCE BETWEEN CENTERS: | 156" |
| TURNING DIAMETER OVER CROSS SLIDE: | 21-1.2" |
| TURNING DIAMETER IN GAP: | 46" |
| BED WIDTH: | 18" |
| SPINDLE SPEEDS - FORWARD (12 CHANGES): | 12 - 1000 RPM |
| SPINDLE BORE: | 105mm (4 1/8") |
| SPINDLE MOUNT/TAPER: | CAMLOCK D1-11 / MT6 |
| LONGITUDINAL FEEDS (32 CHANGES): | .005 to .070 |
| CROSS FEEDS (32 CHANGES): | .003 - .035 IPR |
| MAX CROSS SLIDE TRAVEL: | 18" |
| MAX COMPOUND SLIDE TRAVEL: | 9-1/2" |
| INCH THREADING (36 CHANGES): | 2 - 28 |
| METRIC THREADING (65 CHANGES): | .8 - 14 |
| DIAMETRIC PITCH THREADING (36 CHANGES): | 56 - 4 |
| TAILSTOCK TAPER: | MT6 |
| TAILSTOCK SPINDLE DIAMETER: | 4-1/8" |
| TAILSTOCK QUILL STROKE: | 8-1/4" |
| MOTOR RATING: | 15 HP |
| MACHINE VOLTAGE: 220/440/3/60 | WIRED 440/3/60 |
