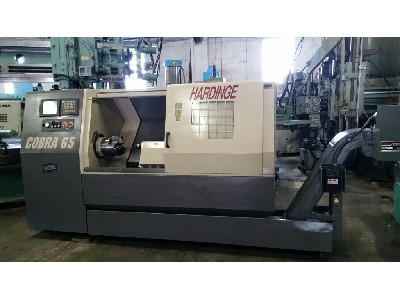

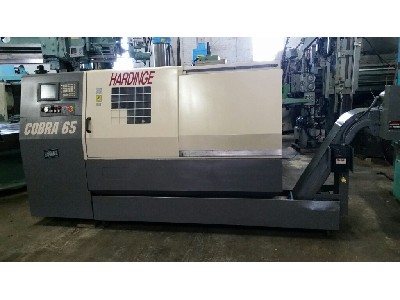

USED Hardinge Cobra 65 CNC LATHE, Fanuc 21i-TA, Tailstock
Hardinge Cobra LC 65
Age: 2001
Condition: VERY GOOD
Stock Number: 3577
Click to view larger photo
Request a quote on stock# 3577
Equipped With:
USED Hardinge Cobra 65 CNC LATHE, Fanuc 21i-TA, Tailstock
Swing diameter over upper way cover (max) 22.00"/558.8mm
Z-Axis travel (maximum) ................. 31.00"/787.4mm

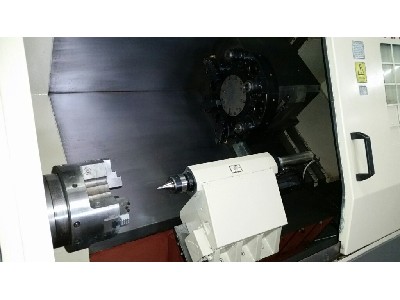

10" 3 Jaw chuck
Spindle configuration ................... ANSI A2-8
Draw tube type .......................... Hydraulic
Round 25C collet (Through Capacity) ..... 2.559"/65mm
25C Step chuck (Gripping Capacity) ...... 8"/203mm
AC Digital Spindle Drive System:
Horsepower rating (Intermittent) ........ 29.5HP/22.0kW
Horsepower rating (Continuous) .......... 24.8HP/18.5kW
Standard
Torque rating (Intermittent) ............ 138ft-lb/187.1Nm
Torque rating (Continuous) .............. 116ft-lb/157.3Nm
Speed range (1-rpm steps) ............... 35 to 4,500 rpm
Carriage and Cross Slide
X-Axis travel (maximum) ................. 9.57"/243.1mm
X-Axis traverse rate (maximum) .......... 472ipm/12mpm
Z-Axis traverse rate (maximum) .......... 787ipm/20mpm
Z-Axis thrust (maximum) ................. 1,900lbs./8451Nm
Vertical Turret (Bidirectional)
No. of stations ......................... 12
Square shank tool size (maximum) ........ 1" 25mm
Round shank tool sie (maximum) .......... 1 1/2" 40mm
Tailstock (Optional)
Manual positioning ...................... Hydraulic Quill
Morse taper #/conter .................... MT No. 4
Travel of tailstock base ................ 33.0"/838.2mm
Quill travel ............................ 6.0"/152.4mm
Thrust @ 500 psi (maximum) .............. 1,500lbs/6672.2Nm
Miscellaneous
Compressed air requirement .............. 70 to 90 psi
5 to 6 sclm
Coolant tank capacity ................... 47gal/177.9L
Approximate shipping weight ............. 9,000lbs/4086kg
Machine dimensions:
Length................................... 123.5"/3136.9mm
Add'l length with chip removal system ... 42.73"/1085.3mm
Depth ................................... 68.0"/1727.2mm
Height .................................. 73.0"/1854.2mm
Power Requirements ............ 230 Volts/3 Phase
EQUIPPED WITH:
- RS-232 SERIAL PORT
- 25C HYDRAULIC COLLET SYSTEM AND HARDINGE POWER 3 JAW CHUCK!!!!
- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
HOURS ON METER 14,377
General specifications from literature and must be verified
CAN BE SEEN UNDER POWER ON OUR FLOOR, AVAILABLE IMMEDIATELY, NO LOADING CHARGES
