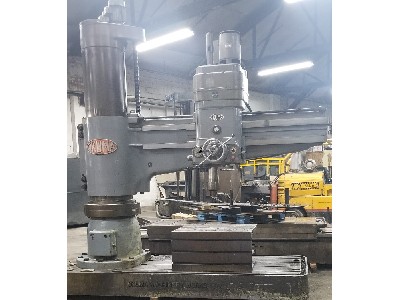

Request a quote on stock# 4092| Specification | Description |
|---|---|
| MAXIMUM DIAMETER DRILLED | 3" Steel - 3 1/2 Cast at 90 RP |
| DISTANCE BETWEEN COLUMN & SPINDLE | 78.7" |
| DISTANCE FROM SPINDLE TO BASE | 74" Max |
| TAPER IN SPINDLE (MORSE) | #5 |
| QUILL DIAMETER | 5" w/7" Bearing Supp/tool end |
| SPINDLE TRAVEL | 17" |

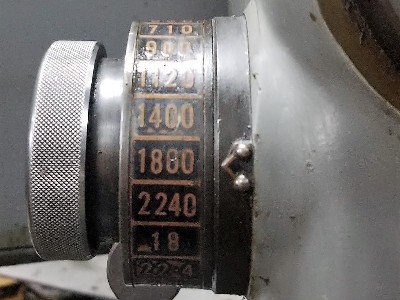

| SPINDLE SPEEDS (16 CHANGES) | 18 to 2240 RPM |

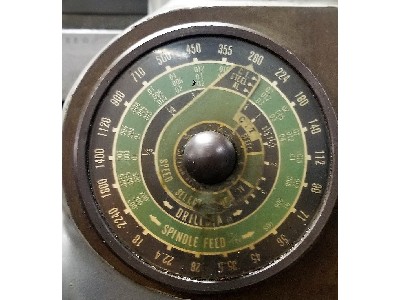

| SPINDLE FEEDS (18 FEEDS) | .001 - .050 |
| DIAMETER OF COLUMN | 22" |
| LENGTH OF ARM | Overall |
| BOX TABLE SIZE | 39 1/2" x29 1/2" x 19 1/2" |
| MAIN MOTOR | 7.5 Kw - 10HP |
| APROXIMATE OVERALL DIMENSIONS | 146" x 130" x52" |
| NET APPROXIMATE WEIGHT | Approx. 25,400 lbs. |
