USED SAMSTAR 39 x 9 COLUMN RADIAL DRILL

USED SAMSTAR 39" x 9" COLUMN RADIAL DRILL

SAMSTAR Z3032X10

Condition: VERY GOOD

Stock Number: 4054

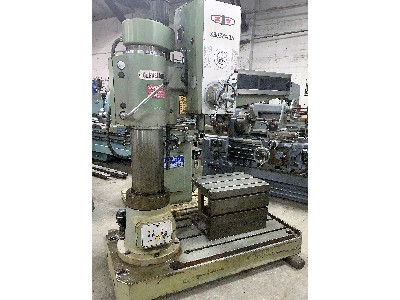

Click to view larger photo

Request A Quote On Our Stock Number: 4054 USED SAMSTAR 39 x 9 COLUMN RADIAL DRILLRequest a quote on stock# 4054
SpecificationDescription
MAXIMUM DIAMETER DRILLED1 1/2 cast 1 1/4 mild steel
DISTANCE BETWEEN COLUMN & SPINDLE39:"
DISTANCE FROM SPINDLE TO BASE40"
TAPER IN SPINDLE (MORSE)#4
QUILL DIAMETER2 3/4"
SPINDLE TRAVEL11"
SPINDLE SPEEDS (16 CHANGES)32 to 2500 RPM
SPINDLE FEEDS (8 CHANGES)0.10 - 1.250 IPM
DIAMETER OF COLUMN9"
LENGTH OF ARM39"
BOX TABLE SIZE23 1/2"x 17 1/2" x17 1/2"
MAIN MOTOR3 HP
APROXIMATE OVERALL DIMENSIONS68" X 32" X 94"
NET APPROXIMATE WEIGHT4,500 LBS.

Equipped With:
BOX TABLE 23 1/2"x 17 1/2" x17 1/2"
WORK LIGHT
COOLANT SYSTEM 1/6 HP
POWER ELEVATION 1 HP
POWER CLAMPING ON COLUMN 1/2 HP

Can be seen under power on our showroom floor!!
